CNC Tapping Machine
Looking for a high-performance CNC Tapping Machine to boost your manufacturing output? DUOMI CNC offers an advanced line of CNC tapping machines designed for precision threading in hardware components, sheet metal parts, and industrial fittings. Built for efficiency, accuracy, and long-term reliability, our CNC Tapping Machine is the preferred solution for factories demanding consistent and high-speed tapping in steel, aluminum, copper, and brass materials.
Model: DNC-1530DT
High-Performance Multi Spindle Tapping Machine by DUOMI CNC
☑ The machine features a machining stroke of X1500mm x Y300mm x Z200mm.
☑ Hole Size Range: M2 – M14.
☑ Spindle Speed: 1,00 – 4,000 RPM.
☑ Positioning Accuracy: ±0.01mm.
☑ Cooling System: Oil mist / Coolant.
☑ Material Support: 304/316L stainless steel, Copper, Aluminum, duplex stainless, titanium.
☑ 24/7 Reliability: Built for continuous operation in mass production lines.
👉 Contact us now for a demo, catalog, or factory-direct pricing.
specification of cnc drilling and tapping machine
Whether you're producing brackets, frames, enclosures, or fittings, the CNC Tapping Machine from DUOMI CNC is your go-to solution for accurate, fast, and reliable tapping operations.
|
Machine type
|
DNC-1530DT
|
|
XYZ three-axis machining stroke0
|
X1500mm Y300mm Z200mm
|
|
Spindle speed
|
1500~24000rpm(Can be selected according to demand)
|
|
Spindle taper hole
|
ER20
|
|
Spindle power
|
0.55~3.0KW
|
|
X axis moving speed
|
30m/min~60m/min
|
|
Y axis moving speed
|
25m/min
|
|
Z axis moving speed
|
25m/min
|
|
Borehole diameter range
|
1~20mm
|
|
Chamfer diameter range
|
1~20mm
|
|
Tool magazine
|
Manual tool change
|
|
Repeated positioning accuracy
|
±0.01mm
|
|
Table size
|
1500*280mm
|
|
Programming mode
|
CAD file import/computer programming/manual programming
|
|
System program storage capacity
|
About 10,000
|
|
System external signal control
|
Support
|
|
Operating voltage
|
AC 220V/50HZ
|
|
Machine weight
|
Approx. 1300KG
|
|
Floor space
|
3000*1500*1700mm
|
Why Choose DUOMI CNC Tapping Machine?
✅ High-Speed Threading up to 4000 RPM
✅ Supports M2–M16 Tapping Sizes for various metal parts
✅ Servo-Controlled Feed ensures perfect thread depth and pitch
✅ Low Vibration, High Stability for precise multi-point tapping
✅ Compact Footprint, Big Output – Ideal for volume production
✅ User-Friendly CNC Interface with programmable tap cycles
✅ Compatible with Drilling & Tapping Hybrid Lines
Global Reach & Market Leadership
As a top-tier manufacturer, DUOMI CNC’s CNC Tapping Machine has been deployed in over 50 countries, including the United States, Germany, South Korea, Turkey, and Mexico. We serve industries ranging from automotive parts, appliance frames, and fitness equipment, to aerospace brackets and electronic enclosures.
🗣️ Customer Testimonial – Turkey
“DUOMI CNC's tapping machine reduced our cycle time by 40% while maintaining thread accuracy. It's compact, reliable, and the after-sales support was top-notch.”
— Ahmet K., Plant Supervisor, Istanbul Precision Metals
Application Scenarios

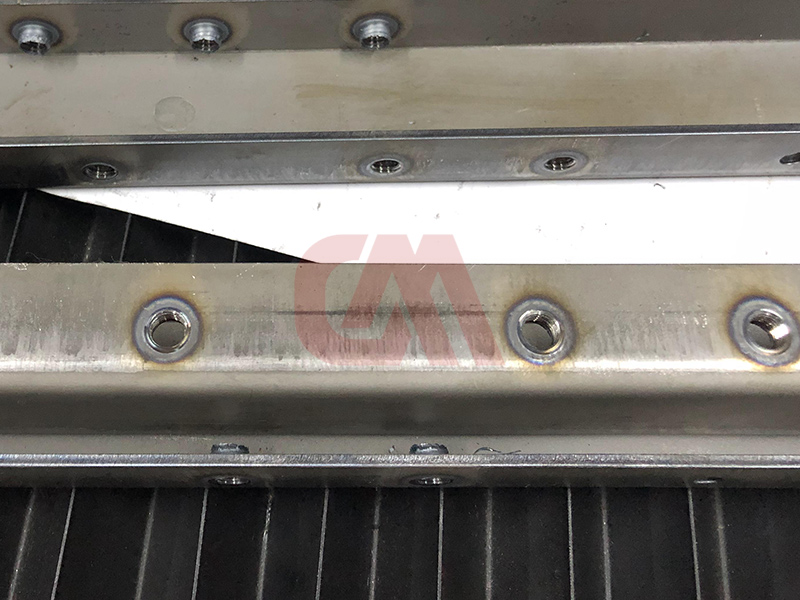

Steel and aluminum bracket tapping
Appliance and HVAC frame threading
Automotive seat frame and connector parts
Copper and brass fittings tapping
Fitness equipment and rack components
Electronic housing and control box threads
Technical Specifications
Thread Range: M2 – M16
Spindle Speed: 500–4000 RPM
Control Interface: Touchscreen CNC / PLC
Material Support: Carbon steel, stainless steel, aluminum, brass
Optional Features: Dual-spindle, tapping + drilling in one cycle, auto feeding
Contact Us for a Custom Quote
Ready to scale up your tapping operations? Choose DUOMI CNC for a proven CNC Tapping Machine that delivers precision, reliability, and performance.
📧 Email: service@xdmcnc.com
🌐 Website: domicncdrillingmachines.com
📱 WhatsApp: Global Technical Support Available
DUOMI CNC – Your Trusted CNC Tapping Machine Partner Worldwide
Fast. Accurate. Built for Industry.
Adopt CNC machining center numerical control system, which ensures high precision, excellent stability, and efficient operation. This system enhances automation capabilities, providing precise control over complex machining tasks for optimal performance and reliability.
servo drive doublespindle, one spindle for drilling, one spindle for tapping, seamlessly integrated to perform both processes in a single clamping. This design ensures high efficiency, precision, and time-saving operations, making it ideal for complex machining requirements.
reinforce and thicken the machine base, temper stress relief, and perform high-precision large-scale cnc machining three times to ensure accuracy and stability. This robust design minimizes deformation, enhances durability, and provides a solid foundation for precise machining operations.
brand guide screw, manually shoveled to ensure precise installation and alignment, guaranteeing the accuracy and long-term performance of the machine. This meticulous process enhances stability and reliability during high-precision operations.
each shaft of the machine is equipped with an automatic lubrication system to extend the service life of the transmission parts and reduce the maintenance difficulty for workers. This system ensures continuous optimal performance by reducing friction, preventing wear, and minimizing downtime, ultimately lowering maintenance costs and improving operational efficiency.
universal t-slot table, with customized tooling options tailored to different products. Tooling can be easily replaced when changing products, offering versatile compatibility. Suitable for a variety of products, or you can choose the slide table option—only one can be selected, depending on the specific needs of the production line. This flexibility ensures efficient adaptability and optimized performance for diverse manufacturing requirements.
slidetable, equipped with pneumatic tooling that moves according to product length, eliminating the need for re-adjustment of accuracy. This feature streamlines operations, reducing setup time and ensuring consistent precision. Alternatively, you can choose the t-slot table, but only one option can be selected, depending on the specific production requirements.
What is a new CNC drilling machine?
A new CNC drilling machine refers to a modern, computer-controlled drilling system designed to precisely and efficiently create holes in various materials—such as metal, plastic, or composites—based on programmable instructions (G-code). No programming experience is required — easy to operate for any user.
What makes CNC drilling and tapping machines superior?
CNC drilling and tapping machines dramatically improve production speed and accuracy. With automated positioning and programmable settings, these machines eliminate human error, reduce material waste, and ensure uniform hole depth and thread quality. Compared to manual methods, they deliver consistent, high-precision results across high-volume operations.
Key benefits of CNC drilling and tapping machines?
Whether you're manufacturing aluminum furniture, stainless steel components, automotive parts, or kitchen fixtures, CNC drilling and tapping machines offer unmatched versatility. Their ability to process a wide range of materials—including steel, aluminum, and alloys—makes them ideal for industries requiring rapid and repeatable drilling and threading operations.
Why choose a CNC drilling and tapping machine?
Modern CNC drill-tap machines are designed with low maintenance, compact footprints, and intuitive interfaces. This reduces labor costs, minimizes downtime, and allows even semi-skilled operators to achieve professional-grade output. The investment pays off quickly through improved productivity, reduced rework, and long-term operational savings.
Key Features of a New CNC Drilling Machine
This machine is suitable for CNC drilling, tapping, and chamfering in the production and processing of all-aluminum furniture, stainless steel furniture, office furniture, bathroom and kitchen equipment, and aluminum doors and windows.
Duomi CNC vs. Bench Drills: What Makes the Difference?
Duomi CNC drilling and tapping machines outperform traditional bench drills by automating the entire process. Operators no longer need to manually adjust drilling positions or depth. With programmable multi-axis control, Duomi machines complete complex operations in seconds—boosting productivity by up to 3x compared to manual bench drilling.
Duomi CNC vs. Traditional CNC: What’s Better?
Compared to large, expensive conventional CNC machines, Duomi CNC drill-tap systems offer a smaller footprint, lower investment cost, and intuitive controls. Operators can be trained quickly, maintenance is minimal, and the machines are tailored to real-world workshop needs. It’s the smarter choice for factories seeking high ROI with flexible, high-speed drilling solutions.
Why Choose Duomi CNC Drilling Machines Instead of EDM?
Duomi CNC drilling and tapping machines operate significantly faster than EDM (Electrical Discharge Machining) systems. While EDM requires slow, controlled erosion to remove material, Duomi’s mechanical drilling and tapping complete holes and threads in seconds—making them ideal for mass production and high-efficiency factories.
Cost and Delivery Benefits of Duomi CNC Machines
As a direct manufacturer, Duomi eliminates the middleman markup, providing factory-direct pricing and faster logistics. Our efficient export process ensures timely shipment to Asia, Europe, the Americas, and beyond—backed by responsive after-sales service and technical support worldwide.
Why Duomi CNC Offers the Best After-Sales Service?
Duomi offers exceptional after-sales service with 24/7 technical support. Our expert team is available to assist with installation, programming, troubleshooting, and machine maintenance. Whether you need guidance remotely or onsite, our dedicated service ensures your CNC drilling and tapping machines operate smoothly, minimizing downtime and maximizing productivity.
Get in Touch with Us Today!
Interested in learning more? Contact us now to find out how our machines can improve your manufacturing process.
-
