CNC Friction Drilling Machine for Sports Fitness Equipment

CNC Friction Drilling Machine in Sports Equipment Manufacturing DNC-3030DDTT

Features:
This model is a CNC multi-axis driling and tapping machine with dual driling shaft and dual tapping shaft.
The Z-axis completes the single aperture of two products or the two apertures of one product at one time, and the efficiency is doubled.
Semi-closed structure, convenient for emplovees to load and unload materials during non-stop circular processing.
Large stroke can clamp muliple products at the same time, set up muliple zero points to achieve let and right double station or muli-station processing.

Industry Pain Points in Fitness Equipment Manufacturing
In the competitive world of fitness equipment manufacturing, precision and durability are critical. However, traditional hole-making methods such as tapping, welding, or punching often lead to several challenges:

Tube Wall Damage: Thin-walled tubes commonly used in gym equipment are prone to deformation or cracks when drilled conventionally.
Welding Weak Points: Welded nuts and inserts can loosen or corrode over time, leading to safety concerns.
Low Efficiency: Manual or multi-step drilling processes are time-consuming and labor-intensive.
Inconsistent Quality: Mechanical wear and operator variability result in irregular hole finishes or off-position threads.

These problems not only increase production costs and lead times but also pose serious risks to the structural integrity of products, affecting brand reputation and end-user safety.

The Solution: CNC Friction Drilling Machine by DUOMI CNC
Our friction drilling machine is a CNC-based, high-speed thermal drilling solution designed specifically for processing holes in metal tubing, including stainless steel, aluminum, and mild steel—ideal for fitness equipment frames.

How It Works:
CNC Friction drilling uses a rotating, heat-generating conical tool to form holes by displacing material, not removing it. This creates clean, burr-free holes with an extended sleeve, providing extra thread depth and strength without needing weld nuts or rivets.

Key Advantages for the Fitness Equipment Industry
✅ No Welding, No Nuts, No Cracks
– Forms a robust sleeve from the base metal itself, eliminating the need for secondary fastening parts.

✅ Stronger Thread Engagement
– Ensures threads are formed in extended collars, perfect for handling the dynamic loads of gym machines.

✅ Perfect for Thin-Walled Tubes
– Drills 1.0–4.0 mm wall thickness without distortion or deformation.

✅ Increased Production Efficiency
– Fully automated CNC control, multi-head spindle optional, supports batch production with consistent quality.

✅ Clean, Eco-Friendly Process
– No cutting fluid required, no chip waste, minimal maintenance.

✅ One-Step Process
– Drill and form in one pass; thread forming can follow immediately without pre-drilling.

Industry Applications
Our friction drilling machines are widely used in:

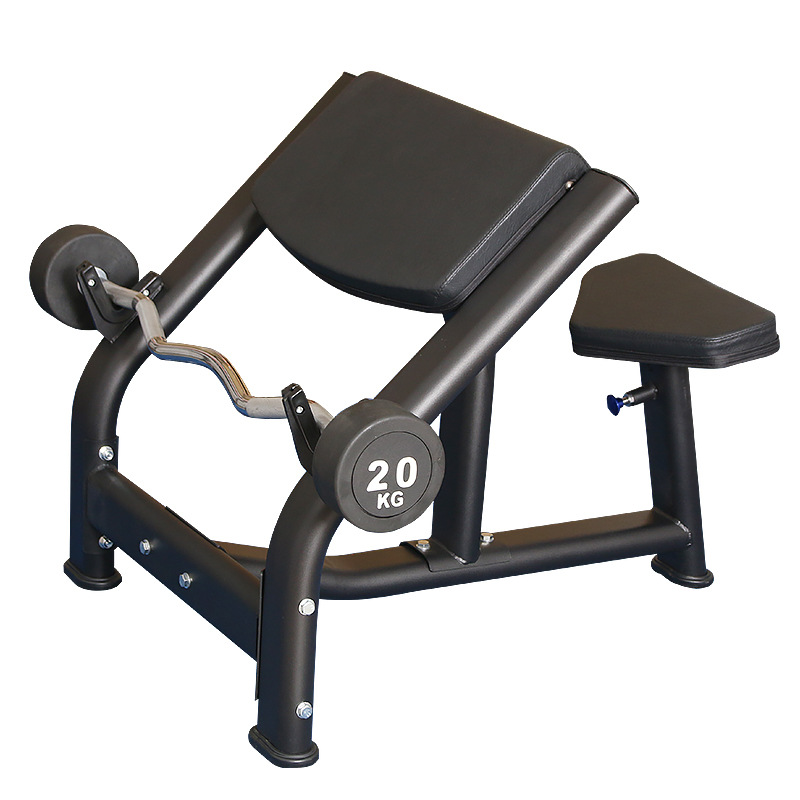

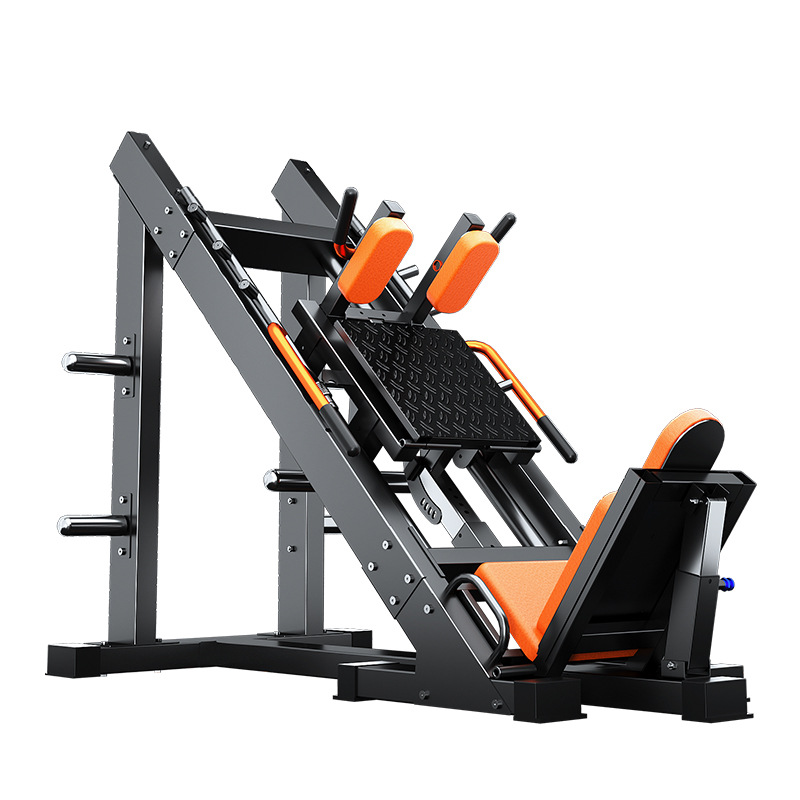

Gym equipment frames (e.g., squat racks, benches, cable machines)
Fitness accessories (e.g., bike frames, pedal arms, seat posts)
Strength and cardio machines
Home and commercial gym products

Customer Testimonials

"We replaced our old welding process with DUOMI’s CNC friction drilling machine. The results were immediate: faster assembly, zero weld failures, and smoother production flow."
— Jason L., Production Manager, US-based Fitness Brand

"This machine changed the way we manufacture aluminum frames. It reduced our defect rate by 70%."
— Chen W., Factory Director, Sports Equipment Supplier in Taiwan

Why Choose DUOMI CNC?

🌐 15+ Years of Expertise in CNC drilling and thermal forming
🛠️ Customizable Models for single, double, and multi-spindle operations
🌍 Exported to 30+ Countries with proven results in fitness, furniture, and automotive sectors
🔧 After-Sales Support including remote diagnostics and spare parts delivery
