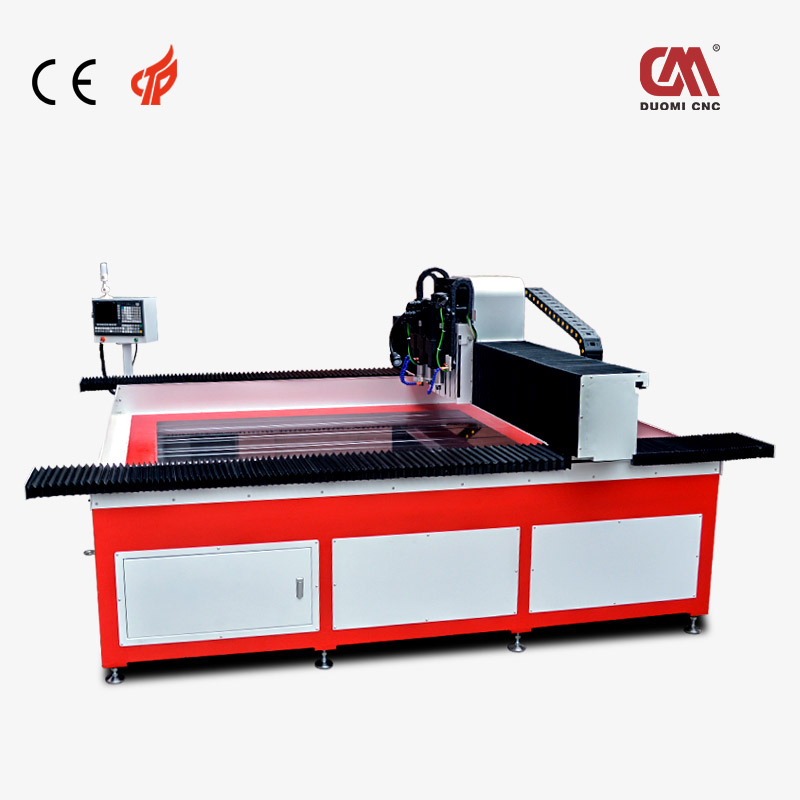

CNC drilling and tapping riveting complex machine
Looking to streamline your metalworking process? The CNC drilling and tapping riveting complex machine by DUOMI CNC offers an all-in-one automation solution for drilling, tapping, and riveting on a single platform. Engineered for high-efficiency production in sheet metal, structural brackets, and hollow profiles, this machine replaces multiple setups, reduces labor costs, and significantly boosts productivity.
Model: DHC-3028N10
CNC Drilling and Tapping Riveting Complex Machine
☑ The machine features a machining stroke of X2800mm x Y3000mm x Z200mm.
☑ Hole Size Range: 1 – 16mm.
☑ Spindle Speed: 1000~24000rpm.
☑ Positioning Accuracy: ±0.02mm.
☑ Tool magazine: Automatic tool changing (10 knives).
☑ Cooling System: Oil mist / Coolant.
☑ 24/7 Reliability: Built for continuous operation in mass production lines.
👉 Contact us now for a demo, catalog, or factory-direct pricing.
specification of cnc drilling and tapping machine
DHC-3028N10 CNC Drilling and Tapping Riveting Complex Machine
NON-STANDARDCUSTOMIZATION
Features:
A multi-functional CNC machine integrating CCD visual imaging, automatic driling chamfering and automatic riveting.
CCD vision system automatically scans and identifies hole positions, accurate and eficient.
After the vibrating plate feeds nails, the machine tool automatically pulls the rivet, and the 3 riveting guns switch the rivet action and rivet diameter at will.
The Y-axis is a dual drive, and the heavy-duty ball linear slide rai is combined with a double-set transmission mechanism to ensure the smooth operation of the moving beam.
I adopts widened and thickened moving beam type door structure form, and the spindle will not shake when accelerating and decelerating, and the speed is fast and stable.
The machine tool side is equipped with a row tool magazine, and the multi-specification hole diameter drling chamfering process is clamped at one time to complete the processing.
|
Machine type
|
DHC-3028N10
|
|
XYZ three-axis machining stroke0
|
X2800mm Y3000mm Z200mm
|
|
Spindle speed
|
1000~24000rpm(Can be selected according to demand)
|
|
Spindle taper hole
|
ISO25
|
|
Spindle power
|
2.2KW(Optional)
|
|
X axis moving speed
|
30m/min~60m/min
|
|
Y axis moving speed
|
25m/min
|
|
Z axis moving speed
|
25m/min
|
|
Borehole diameter range
|
1~16mm
|
|
Other functions
|
CCD automatically finds the hole position
|
|
Other functions
|
Automatic nail feed riveting processing
|
|
Tool magazine
|
Automatic tool changing (10 knives)
|
|
Repeated positioning accuracy
|
±0.02mm
|
|
Table form
|
T-slot table/Slide table (optional on demand)
|
|
Programming mode
|
CAD file import/computer programming/manual programming
|
|
System program storage capacity
|
About 10,000
|
|
System external signal control
|
support
|
|
Operating voltage
|
AC 380V/50HZ
|
|
Machine weight
|
Approx. 5000KG
|
|
Floor space
|
5000*4800*2300mm
|
Global Trust & Market Coverage
DUOMI CNC has exported its CNC drilling and tapping riveting complex machine to over 45 countries, including the USA, Germany, Mexico, South Korea, and Turkey. The system is widely used in:
Steel and aluminum furniture frames
Electrical enclosure manufacturing
Automotive structural brackets
Air-conditioning sheet metal parts
Smart shelving & metal display fixtures
Customer Testimonial – Mexico
“DUOMI CNC's CNC drilling and tapping riveting complex machine has transformed our production line. We reduced operator count by 60%, and part consistency is flawless. It's a true game-changer.”
— Carlos M., Operations Manager, Monterrey Metal Systems
🔍 Ideal for High-Efficiency Sheet Metal Production
This CNC drilling and tapping riveting complex machine is especially suited for manufacturers seeking to improve process integration, reduce downtime, and maintain tight tolerances for multiple fastening processes.
📩 Get a Free Demo or Quotation Now
Want to reduce costs and increase efficiency with one intelligent solution?
Contact DUOMI CNC today to see the CNC drilling and tapping riveting complex machine in action.
✔️ Free Sample Testing
✔️ Fast Global Delivery
✔️ Expert Technical Support
✔️ Custom Machine Options Available
📧 Email: service@xdmcnc.com
🌐 Website: domicncdrillingmachines.com
📱 WhatsApp: 24/7 Customer Support Available
DUOMI CNC — Trusted Manufacturer of CNC Drilling and Tapping Riveting Complex Machines
Compact Integration. Maximum Output. Global Performance.
Adopt CNC machining center numerical control system, which ensures high precision, excellent stability, and efficient operation. This system enhances automation capabilities, providing precise control over complex machining tasks for optimal performance and reliability.
servo drive doublespindle, one spindle for drilling, one spindle for tapping, seamlessly integrated to perform both processes in a single clamping. This design ensures high efficiency, precision, and time-saving operations, making it ideal for complex machining requirements.
reinforce and thicken the machine base, temper stress relief, and perform high-precision large-scale cnc machining three times to ensure accuracy and stability. This robust design minimizes deformation, enhances durability, and provides a solid foundation for precise machining operations.
brand guide screw, manually shoveled to ensure precise installation and alignment, guaranteeing the accuracy and long-term performance of the machine. This meticulous process enhances stability and reliability during high-precision operations.
each shaft of the machine is equipped with an automatic lubrication system to extend the service life of the transmission parts and reduce the maintenance difficulty for workers. This system ensures continuous optimal performance by reducing friction, preventing wear, and minimizing downtime, ultimately lowering maintenance costs and improving operational efficiency.
universal t-slot table, with customized tooling options tailored to different products. Tooling can be easily replaced when changing products, offering versatile compatibility. Suitable for a variety of products, or you can choose the slide table option—only one can be selected, depending on the specific needs of the production line. This flexibility ensures efficient adaptability and optimized performance for diverse manufacturing requirements.
slidetable, equipped with pneumatic tooling that moves according to product length, eliminating the need for re-adjustment of accuracy. This feature streamlines operations, reducing setup time and ensuring consistent precision. Alternatively, you can choose the t-slot table, but only one option can be selected, depending on the specific production requirements.
What is a new CNC drilling machine?
A new CNC drilling machine refers to a modern, computer-controlled drilling system designed to precisely and efficiently create holes in various materials—such as metal, plastic, or composites—based on programmable instructions (G-code). No programming experience is required — easy to operate for any user.
What makes CNC drilling and tapping machines superior?
CNC drilling and tapping machines dramatically improve production speed and accuracy. With automated positioning and programmable settings, these machines eliminate human error, reduce material waste, and ensure uniform hole depth and thread quality. Compared to manual methods, they deliver consistent, high-precision results across high-volume operations.
Key benefits of CNC drilling and tapping machines?
Whether you're manufacturing aluminum furniture, stainless steel components, automotive parts, or kitchen fixtures, CNC drilling and tapping machines offer unmatched versatility. Their ability to process a wide range of materials—including steel, aluminum, and alloys—makes them ideal for industries requiring rapid and repeatable drilling and threading operations.
Why choose a CNC drilling and tapping machine?
Modern CNC drill-tap machines are designed with low maintenance, compact footprints, and intuitive interfaces. This reduces labor costs, minimizes downtime, and allows even semi-skilled operators to achieve professional-grade output. The investment pays off quickly through improved productivity, reduced rework, and long-term operational savings.
Key Features of a New CNC Drilling Machine
This machine is suitable for CNC drilling, tapping, and chamfering in the production and processing of all-aluminum furniture, stainless steel furniture, office furniture, bathroom and kitchen equipment, and aluminum doors and windows.
Duomi CNC vs. Bench Drills: What Makes the Difference?
Duomi CNC drilling and tapping machines outperform traditional bench drills by automating the entire process. Operators no longer need to manually adjust drilling positions or depth. With programmable multi-axis control, Duomi machines complete complex operations in seconds—boosting productivity by up to 3x compared to manual bench drilling.
Duomi CNC vs. Traditional CNC: What’s Better?
Compared to large, expensive conventional CNC machines, Duomi CNC drill-tap systems offer a smaller footprint, lower investment cost, and intuitive controls. Operators can be trained quickly, maintenance is minimal, and the machines are tailored to real-world workshop needs. It’s the smarter choice for factories seeking high ROI with flexible, high-speed drilling solutions.
Why Choose Duomi CNC Drilling Machines Instead of EDM?
Duomi CNC drilling and tapping machines operate significantly faster than EDM (Electrical Discharge Machining) systems. While EDM requires slow, controlled erosion to remove material, Duomi’s mechanical drilling and tapping complete holes and threads in seconds—making them ideal for mass production and high-efficiency factories.
Cost and Delivery Benefits of Duomi CNC Machines
As a direct manufacturer, Duomi eliminates the middleman markup, providing factory-direct pricing and faster logistics. Our efficient export process ensures timely shipment to Asia, Europe, the Americas, and beyond—backed by responsive after-sales service and technical support worldwide.
Why Duomi CNC Offers the Best After-Sales Service?
Duomi offers exceptional after-sales service with 24/7 technical support. Our expert team is available to assist with installation, programming, troubleshooting, and machine maintenance. Whether you need guidance remotely or onsite, our dedicated service ensures your CNC drilling and tapping machines operate smoothly, minimizing downtime and maximizing productivity.
