High-Efficiency CNC Drill and Tap Machine
DUOMI CNC – Precision Drilling and Tapping, All in One Smart Solution
Looking to streamline your metal parts production with one integrated machine? The CNC drill and tap machine from DUOMI CNC offers high-speed drilling and automated tapping in a single, compact unit—perfect for manufacturers in hardware, electronics, automotive, fitness equipment, and display systems.
Trusted in over 30 countries, DUOMI CNC is a global leader in intelligent drilling and tapping technology.
Model: DNC-3030DT
CNC Drill and Tap Machine for High-Efficiency Metal Component Manufacturing
☑ The machine features a machining stroke of X3000mm x Y300mm x Z200mm.
☑ Spindle speed: 1000-24000 rpm.
☑ Drilling diameter range: M2 ~ M14.
☑ Repeated positioning accuracy: ±0.01mm.
☑ Cooling System: Oil mist / Coolant.
☑ Material Support: 304/316L stainless steel, Copper, Aluminum, duplex stainless, titanium.
☑ 24/7 Reliability: Built for continuous operation in mass production lines.
👉 Contact us now for a demo, catalog, or factory-direct pricing.
specification of cnc drilling and tapping machine

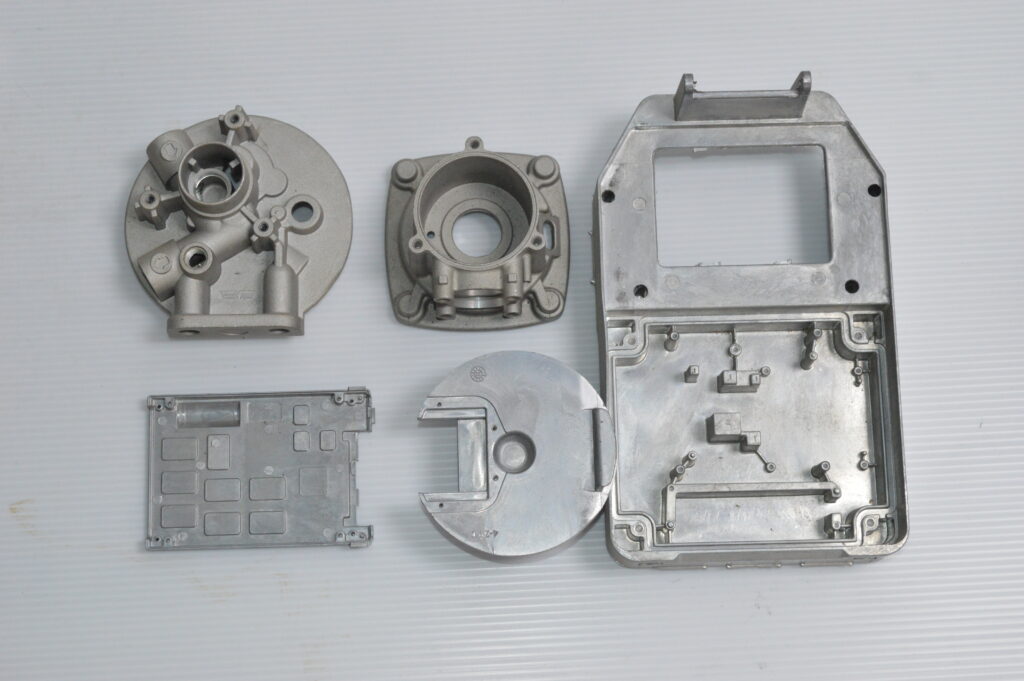

DUOMI CNC is a leading CNC Drill and Tap Machine Manufacturer, specializing in high-precision, high-efficiency solutions for drilling and tapping metal components. Our machines are widely used in the production of die-cast aluminum enclosures, stainless steel brackets, automotive parts, and fitness equipment frames.
With advanced CNC control, multi-station designs, and reliable performance, DUOMI CNC helps manufacturers worldwide improve productivity, reduce labor costs, and achieve consistent hole quality.
|
Machine type
|
DNC-3030DT
|
|
XYZ three-axis machining stroke
|
X3000mm Y300mm Z200mm
|
|
Spindle speed
|
100~24000 rpm (Can be selected according to demand)
|
|
Spindle taper hole
|
ER20
|
|
Spindle power
|
0.55~3.0KW
|
|
X axis moving speed
|
30m/min~60m/min
|
|
Y axis moving speed
|
25m/min
|
|
Z axis moving speed
|
25m/min
|
|
Borehole diameter range
|
1~16mm
|
|
Tapping diameter range
|
M2~M14
|
|
Chamfer range
|
1~20mm
|
|
Tool magazine
|
Manual tool change
|
|
Repeated positioning accuracy
|
±0.01mm
|
|
Table size
|
2000*280mm
|
|
Programming mode
|
CAD file import / computer programming / manual programming
|
|
System program storage capacity
|
About 10,000
|
|
System external signal control
|
Support
|
|
Operating voltage
|
AC 220V/50HZ
|
|
Machine weight
|
Approx. 1600KG
|
|
Floor space
|
4500*1500*1700mm
|
Why Choose DUOMI CNC Drill and Tap Machine?
✅ All-in-One Drilling + Tapping
Eliminate multiple setups and manual rework—achieve perfect thread-ready holes in one cycle.
✅ Micron-Level Accuracy
Ideal for processing aluminum, stainless steel, copper, and mild steel hardware components.
✅ CNC Automation = Labor Savings
Operate with minimal human input while maintaining perfect repeatability and high throughput.
✅ Multi-Spindle & Dual-Station Options
Increase your output with customized setups to suit complex or high-volume workpieces.
✅ Durable Industrial Build
Designed for 24/7 production environments with minimal maintenance requirements.
Global Market, Proven Results
The DUOMI CNC CNC drill and tap machine is actively used in:
🇩🇪 Germany – Precision aluminum brackets & frames
🇺🇸 USA – Automotive battery tray and connector production
🇰🇷 South Korea – Fitness and gym frame fabrication
🇧🇷 Brazil & Southeast Asia – Display racks, kitchen hardware, and metal enclosures
Customer Testimonials
“DUOMI's CNC drill and tap machine helped us combine two operations into one, saving over 40% on processing time and labor costs.”
— Martin K., Automotive Parts Factory, USA
“We've drilled and tapped thousands of holes on stainless steel tubes without tool failure. The machine is rock solid.”
— Jae Min L., Fitness Equipment Manufacturer, South Korea
Contact DUOMI CNC Today for a Free Consultation
Ready to simplify your drilling and tapping workflow? DUOMI CNC offers:
✔ Free application testing & machine recommendations
✔ Fast global shipping & on-site installation
✔ Technical support in multiple languages
✔ Custom tooling and layout options
Request Your Free Quote Now
24-Hour Response | Worldwide Service | OEM & ODM Available
DUOMI CNC – Your Reliable CNC Drill and Tap Machine Manufacturer
From square tubes to complex brackets, DUOMI CNC’s CNC drill and tap machine is built to maximize efficiency, minimize errors, and deliver flawless results with every cycle. Join hundreds of global manufacturers who trust DUOMI for intelligent, automated drilling and tapping.
Drill, Tap, and Succeed — All with DUOMI CNC.
Adopt CNC machining center numerical control system, which ensures high precision, excellent stability, and efficient operation. This system enhances automation capabilities, providing precise control over complex machining tasks for optimal performance and reliability.
servo drive doublespindle, one spindle for drilling, one spindle for tapping, seamlessly integrated to perform both processes in a single clamping. This design ensures high efficiency, precision, and time-saving operations, making it ideal for complex machining requirements.
reinforce and thicken the machine base, temper stress relief, and perform high-precision large-scale cnc machining three times to ensure accuracy and stability. This robust design minimizes deformation, enhances durability, and provides a solid foundation for precise machining operations.
brand guide screw, manually shoveled to ensure precise installation and alignment, guaranteeing the accuracy and long-term performance of the machine. This meticulous process enhances stability and reliability during high-precision operations.
each shaft of the machine is equipped with an automatic lubrication system to extend the service life of the transmission parts and reduce the maintenance difficulty for workers. This system ensures continuous optimal performance by reducing friction, preventing wear, and minimizing downtime, ultimately lowering maintenance costs and improving operational efficiency.
universal t-slot table, with customized tooling options tailored to different products. Tooling can be easily replaced when changing products, offering versatile compatibility. Suitable for a variety of products, or you can choose the slide table option—only one can be selected, depending on the specific needs of the production line. This flexibility ensures efficient adaptability and optimized performance for diverse manufacturing requirements.
slidetable, equipped with pneumatic tooling that moves according to product length, eliminating the need for re-adjustment of accuracy. This feature streamlines operations, reducing setup time and ensuring consistent precision. Alternatively, you can choose the t-slot table, but only one option can be selected, depending on the specific production requirements.
What is a new CNC drilling machine?
A new CNC drilling machine refers to a modern, computer-controlled drilling system designed to precisely and efficiently create holes in various materials—such as metal, plastic, or composites—based on programmable instructions (G-code). No programming experience is required — easy to operate for any user.
What makes CNC drilling and tapping machines superior?
CNC drilling and tapping machines dramatically improve production speed and accuracy. With automated positioning and programmable settings, these machines eliminate human error, reduce material waste, and ensure uniform hole depth and thread quality. Compared to manual methods, they deliver consistent, high-precision results across high-volume operations.
Key benefits of CNC drilling and tapping machines?
Whether you're manufacturing aluminum furniture, stainless steel components, automotive parts, or kitchen fixtures, CNC drilling and tapping machines offer unmatched versatility. Their ability to process a wide range of materials—including steel, aluminum, and alloys—makes them ideal for industries requiring rapid and repeatable drilling and threading operations.
Why choose a CNC drilling and tapping machine?
Modern CNC drill-tap machines are designed with low maintenance, compact footprints, and intuitive interfaces. This reduces labor costs, minimizes downtime, and allows even semi-skilled operators to achieve professional-grade output. The investment pays off quickly through improved productivity, reduced rework, and long-term operational savings.
Key Features of a New CNC Drilling Machine
This machine is suitable for CNC drilling, tapping, and chamfering in the production and processing of all-aluminum furniture, stainless steel furniture, office furniture, bathroom and kitchen equipment, and aluminum doors and windows.
Duomi CNC vs. Bench Drills: What Makes the Difference?
Duomi CNC drilling and tapping machines outperform traditional bench drills by automating the entire process. Operators no longer need to manually adjust drilling positions or depth. With programmable multi-axis control, Duomi machines complete complex operations in seconds—boosting productivity by up to 3x compared to manual bench drilling.
Duomi CNC vs. Traditional CNC: What’s Better?
Compared to large, expensive conventional CNC machines, Duomi CNC drill-tap systems offer a smaller footprint, lower investment cost, and intuitive controls. Operators can be trained quickly, maintenance is minimal, and the machines are tailored to real-world workshop needs. It’s the smarter choice for factories seeking high ROI with flexible, high-speed drilling solutions.
Why Choose Duomi CNC Drilling Machines Instead of EDM?
Duomi CNC drilling and tapping machines operate significantly faster than EDM (Electrical Discharge Machining) systems. While EDM requires slow, controlled erosion to remove material, Duomi’s mechanical drilling and tapping complete holes and threads in seconds—making them ideal for mass production and high-efficiency factories.
Cost and Delivery Benefits of Duomi CNC Machines
As a direct manufacturer, Duomi eliminates the middleman markup, providing factory-direct pricing and faster logistics. Our efficient export process ensures timely shipment to Asia, Europe, the Americas, and beyond—backed by responsive after-sales service and technical support worldwide.
Why Duomi CNC Offers the Best After-Sales Service?
Duomi offers exceptional after-sales service with 24/7 technical support. Our expert team is available to assist with installation, programming, troubleshooting, and machine maintenance. Whether you need guidance remotely or onsite, our dedicated service ensures your CNC drilling and tapping machines operate smoothly, minimizing downtime and maximizing productivity.
Get in Touch with Us Today!
Interested in learning more? Contact us now to find out how our machines can improve your manufacturing process.
-
