Automatic Drilling and Tapping Machine for Drone Assemblies
The Automatic Drilling and Tapping Machine from DUOMI CNC is engineered specifically for drone assemblies and lightweight aerospace parts, enabling manufacturers to achieve flawless hole processing and thread forming in one automated cycle.In the high-precision world of drone and aerospace component manufacturing, accuracy, consistency, and speed are critical.
Model: DNC-1530DT
Key Advantages of Our Automatic Drilling and Tapping Machine
☑ The machine features a machining stroke of X1500mm x Y300mm x Z200mm.
☑ Hole Size Range: M2–M14.
☑ Low energy consumption and compact footprint.
☑ Material Support: Aluminum, carbon fiber, magnesium alloy.
☑ Spindle Speed: Up to 24000 RPM.
☑ Cycle Time: ~2–4 seconds per hole.
☑ Automation: Optional dual-spindle, Continuous drilling and tapping without downtime.
☑ 24/7 Reliability: Built for continuous operation in mass production lines.
👉 Contact us now for a demo, catalog, or factory-direct pricing.
specification of cnc drilling and tapping machine
Whether you're working with aluminum alloy frames, carbon fiber brackets, or magnesium housings, our Automatic Drilling and Tapping Machine ensures high-speed productivity without compromising structural integrity or dimensional accuracy.
|
Machine type
|
DNC-1530DT
|
|
XYZ three-axis machining stroke
|
X1500mm Y300mm Z200mm
|
|
Spindle speed
|
1000~24000rpm(Can be selected according to demand)
|
|
Spindle taper hole
|
ER20
|
|
Spindle power
|
0.55~3.0KW
|
|
X axis moving speed
|
30m/min~60m/min
|
|
Y axis moving speed
|
25m/min
|
|
Z axis moving speed
|
25m/min
|
|
Borehole diameter range
|
1~16mm
|
|
Tapping diameter range
|
M2~M14
|
|
Chamfer range
|
1~16mm
|
|
Tool magazine
|
Manual tool change
|
|
Repeated positioning accuracy
|
±0.01mm
|
|
Table size
|
1500*280mm
|
|
Programming mode
|
CAD file import/computer programming/manual programming
|
|
System program storage capacity
|
About 10,000
|
|
System external signal control
|
support
|
|
Operating voltage
|
AC 220V/50HZ
|
|
Machine weight
|
Approx. 1500KG
|
|
Floor space
|
3000*1500*1700mm
|
✈️ Built for the Drone and Aerospace Industry
✅ High-Speed, High-Precision Machining
Drill and tap multiple holes—from M2 to M14—in seconds with ±0.01mm accuracy, ensuring perfect alignment on small and complex parts.
✅ Lightweight Material Compatibility
Optimized for drilling and threading in aluminum alloys, composites, carbon fiber, titanium, and thin-wall aerospace materials.
✅ Fully Automated Workflow
The Automatic Drilling and Tapping Machine features CNC programming, servo-driven feed, and multi-spindle options—greatly reducing manual labor and error rates.
✅ Customizable for Various Drone Components
From motor mounts and arm connectors to sensor brackets and gimbal frames, DUOMI’s system adapts to a wide range of UAV applications.
🌍 Global Reach, Local Trust
DUOMI CNC machines are now used in over 30 countries, including Germany, Japan, South Korea, Mexico, and the United States, in drone R&D labs and aerospace part production lines. Our Automatic Drilling and Tapping Machines meet international standards for precision, speed, and operational safety.
🗣️ Customer Testimonial – South Korea
“We use DUOMI CNC's Automatic Drilling and Tapping Machine for our carbon fiber drone frame production. It cut our cycle time in half while improving thread accuracy significantly. The DUOMI team provided great tech support from setup to optimization.”
— Jinwoo Park, CTO, AeroCraft Co., Ltd.
💡 Use Cases
-

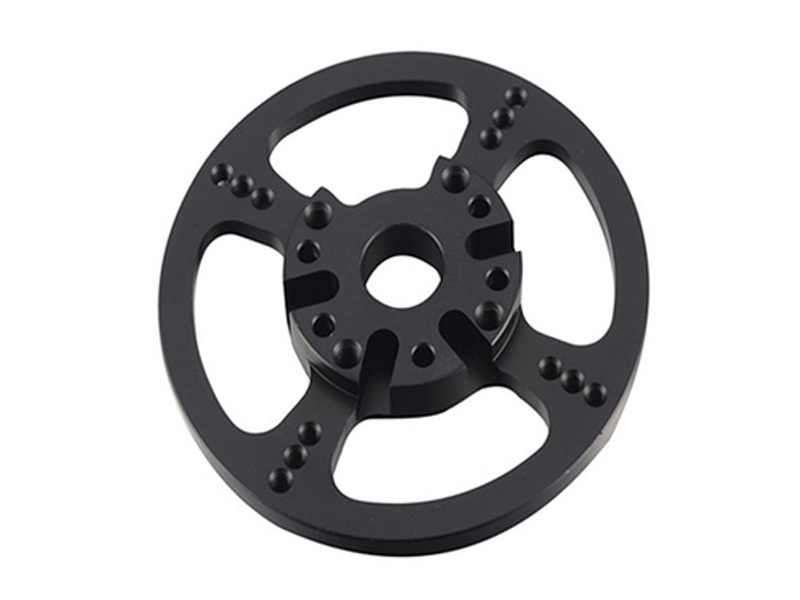

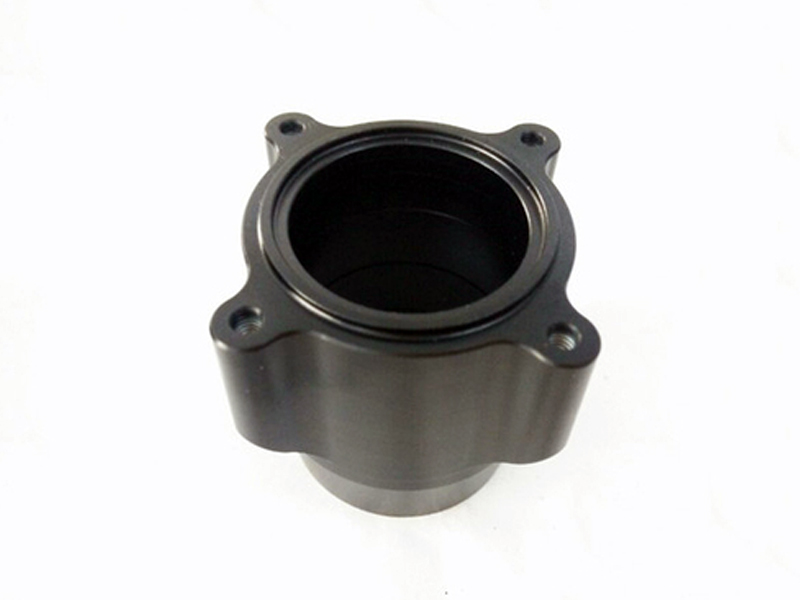

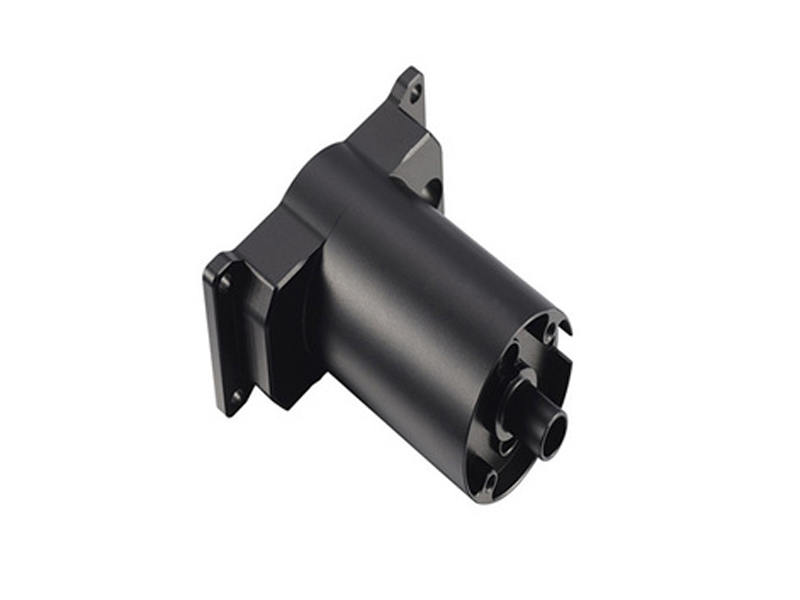

Drone motor mounts
-
Sensor casing brackets
-
Lightweight aluminum fuselage parts
-
Gimbal assembly holes
-
UAV landing gear support
📩 Request a Free Demo or Sample Processing
Want to see how DUOMI CNC’s Automatic Drilling and Tapping Machine performs on your drone parts?
📦 We offer free testing on your samples, with full reports, machining parameters, and video proof.
Adopt CNC machining center numerical control system, which ensures high precision, excellent stability, and efficient operation. This system enhances automation capabilities, providing precise control over complex machining tasks for optimal performance and reliability.
servo drive doublespindle, one spindle for drilling, one spindle for tapping, seamlessly integrated to perform both processes in a single clamping. This design ensures high efficiency, precision, and time-saving operations, making it ideal for complex machining requirements.
reinforce and thicken the machine base, temper stress relief, and perform high-precision large-scale cnc machining three times to ensure accuracy and stability. This robust design minimizes deformation, enhances durability, and provides a solid foundation for precise machining operations.
brand guide screw, manually shoveled to ensure precise installation and alignment, guaranteeing the accuracy and long-term performance of the machine. This meticulous process enhances stability and reliability during high-precision operations.
each shaft of the machine is equipped with an automatic lubrication system to extend the service life of the transmission parts and reduce the maintenance difficulty for workers. This system ensures continuous optimal performance by reducing friction, preventing wear, and minimizing downtime, ultimately lowering maintenance costs and improving operational efficiency.
universal t-slot table, with customized tooling options tailored to different products. Tooling can be easily replaced when changing products, offering versatile compatibility. Suitable for a variety of products, or you can choose the slide table option—only one can be selected, depending on the specific needs of the production line. This flexibility ensures efficient adaptability and optimized performance for diverse manufacturing requirements.
slidetable, equipped with pneumatic tooling that moves according to product length, eliminating the need for re-adjustment of accuracy. This feature streamlines operations, reducing setup time and ensuring consistent precision. Alternatively, you can choose the t-slot table, but only one option can be selected, depending on the specific production requirements.
What is a new CNC drilling machine?
A new CNC drilling machine refers to a modern, computer-controlled drilling system designed to precisely and efficiently create holes in various materials—such as metal, plastic, or composites—based on programmable instructions (G-code). No programming experience is required — easy to operate for any user.
What makes CNC drilling and tapping machines superior?
CNC drilling and tapping machines dramatically improve production speed and accuracy. With automated positioning and programmable settings, these machines eliminate human error, reduce material waste, and ensure uniform hole depth and thread quality. Compared to manual methods, they deliver consistent, high-precision results across high-volume operations.
Key benefits of CNC drilling and tapping machines?
Whether you're manufacturing aluminum furniture, stainless steel components, automotive parts, or kitchen fixtures, CNC drilling and tapping machines offer unmatched versatility. Their ability to process a wide range of materials—including steel, aluminum, and alloys—makes them ideal for industries requiring rapid and repeatable drilling and threading operations.
Why choose a CNC drilling and tapping machine?
Modern CNC drill-tap machines are designed with low maintenance, compact footprints, and intuitive interfaces. This reduces labor costs, minimizes downtime, and allows even semi-skilled operators to achieve professional-grade output. The investment pays off quickly through improved productivity, reduced rework, and long-term operational savings.
Key Features of a New CNC Drilling Machine
This machine is suitable for CNC drilling, tapping, and chamfering in the production and processing of all-aluminum furniture, stainless steel furniture, office furniture, bathroom and kitchen equipment, and aluminum doors and windows.
Duomi CNC vs. Bench Drills: What Makes the Difference?
Duomi CNC drilling and tapping machines outperform traditional bench drills by automating the entire process. Operators no longer need to manually adjust drilling positions or depth. With programmable multi-axis control, Duomi machines complete complex operations in seconds—boosting productivity by up to 3x compared to manual bench drilling.
Duomi CNC vs. Traditional CNC: What’s Better?
Compared to large, expensive conventional CNC machines, Duomi CNC drill-tap systems offer a smaller footprint, lower investment cost, and intuitive controls. Operators can be trained quickly, maintenance is minimal, and the machines are tailored to real-world workshop needs. It’s the smarter choice for factories seeking high ROI with flexible, high-speed drilling solutions.
Why Choose Duomi CNC Drilling Machines Instead of EDM?
Duomi CNC drilling and tapping machines operate significantly faster than EDM (Electrical Discharge Machining) systems. While EDM requires slow, controlled erosion to remove material, Duomi’s mechanical drilling and tapping complete holes and threads in seconds—making them ideal for mass production and high-efficiency factories.
Cost and Delivery Benefits of Duomi CNC Machines
As a direct manufacturer, Duomi eliminates the middleman markup, providing factory-direct pricing and faster logistics. Our efficient export process ensures timely shipment to Asia, Europe, the Americas, and beyond—backed by responsive after-sales service and technical support worldwide.
Why Duomi CNC Offers the Best After-Sales Service?
Duomi offers exceptional after-sales service with 24/7 technical support. Our expert team is available to assist with installation, programming, troubleshooting, and machine maintenance. Whether you need guidance remotely or onsite, our dedicated service ensures your CNC drilling and tapping machines operate smoothly, minimizing downtime and maximizing productivity.
Get in Touch with Us Today!
Interested in learning more? Contact us now to find out how our machines can improve your manufacturing process.
-
